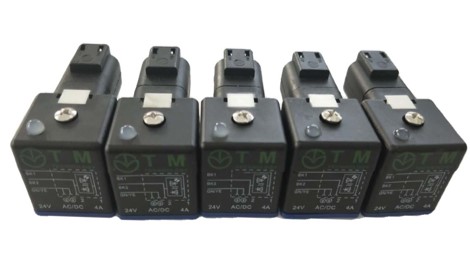

Patented Product: 2‑Pin Deutsch to Square 4‑Way Solenoid Valve Connector Plug, Patented Illuminated Solenoid Coil Adapter
This adapter has completed over 1,000,000 switching endurance tests and 1,000,000 mating‑unmating plug cycles for proven long‑term service life.
1、Easy to InstallFeaturing an integrated one‑piece design. Simply connect the Deutsch‑style end to your cable and the square end to the solenoid valve. No extra tools or complicated procedures are required for field assembly.
2、Reliable & Stable ConnectionInternal conductors are manufactured from high‑conductivity copper. The adapter housing adopts high‑strength insulating engineering plastic. It delivers consistent, dependable contact performance and minimizes risks of bad contact and short‑circuit faults.
3、Wide CompatibilityFits standard 2‑hole Deutsch connectors and square‑form solenoid valve interfaces. Versatile for multiple industrial equipment and hydraulic systems with great general‑purpose adaptability.
4、Excellent DurabilityThe rugged conversion housing provides waterproof, dust‑proof and impact‑resistant properties. It supports stable long‑time operation under tough harsh industrial working conditions.
5、Lower Total Operating CostSimplifies on‑site assembly and improves connection reliability, effectively cutting equipment maintenance and component replacement costs.
Performance Parameters

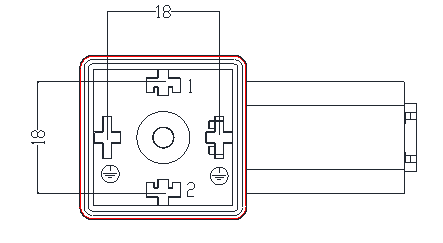

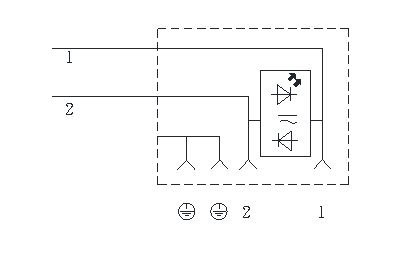

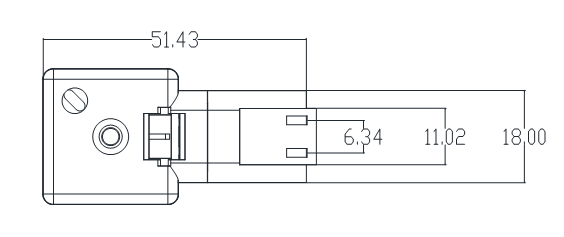

Product Name: 2‑Pin Deutsch to Square 4‑Way Solenoid Valve Connector Plug, Patented Illuminated Solenoid Coil AdapterModel: TT to DIN3650Material Code: TM2020004Rated Voltage: 24 V DC / ACWorking Current: 4 AProtection Rating: IP67Built‑in suppression diode for over‑voltage protectionCable tail mates with Deutsch DT04‑2P connectorCompliant with EN175301‑803 technical specificationsDual‑color Red/Green LED indicator lamp, ideal replacement for traditional back‑EMF suppression diodes
FAQ – Common Questions：
Q: What voltage does this plug support?
A: Rated 24V DC/AC, working current up to 4A.
Q: Is the LED indicator included?
A: Yes, it features a built‑in dual‑color red/green LED for power status visualization.
Q: What protection rating does it have?
A: IP67 — fully dust‑tight and protected against temporary water immersion.
Q: Which Deutsch connector does the tail mate with?
A: The cable tail is compatible with Deutsch DT04‑2P (2‑pin) connectors.
Q: Does it meet any industry standards?
A: Yes, it complies with EN175301‑803 technical requirements.
