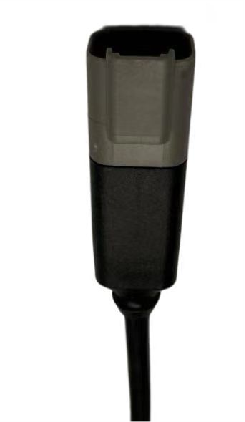

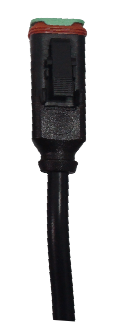

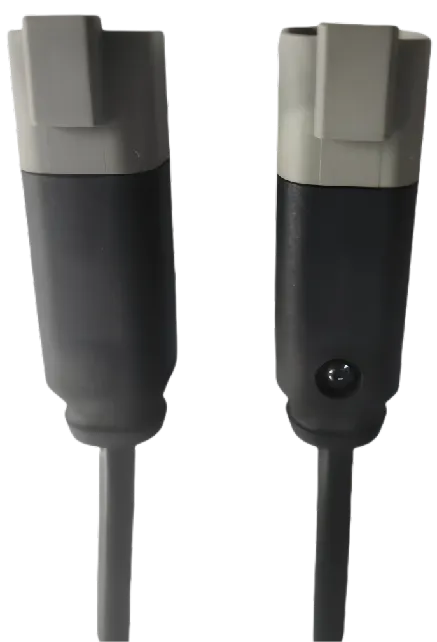

DT04-4P pre-terminated molded tail male plug, IP67 waterproof sealed. Built-in red-green LED indicator to check power status and diagnose faults quickly. Available with PVC or PUR cable, multiple cable lengths for construction machinery, agricultural machines and hydraulic solenoid valves.

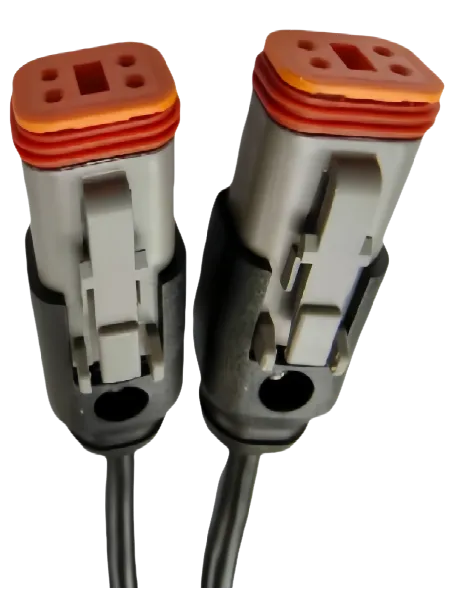

DT series waterproof connectors are engineered to match the structure of Deutsch DT connectors. Widely used for electric wiring of construction machinery, agricultural equipment and mobile hydraulic systems. These pre-molded one-piece harness plugs are fitted with sealing gaskets to deliver waterproof, dustproof and anti-vibration performance.

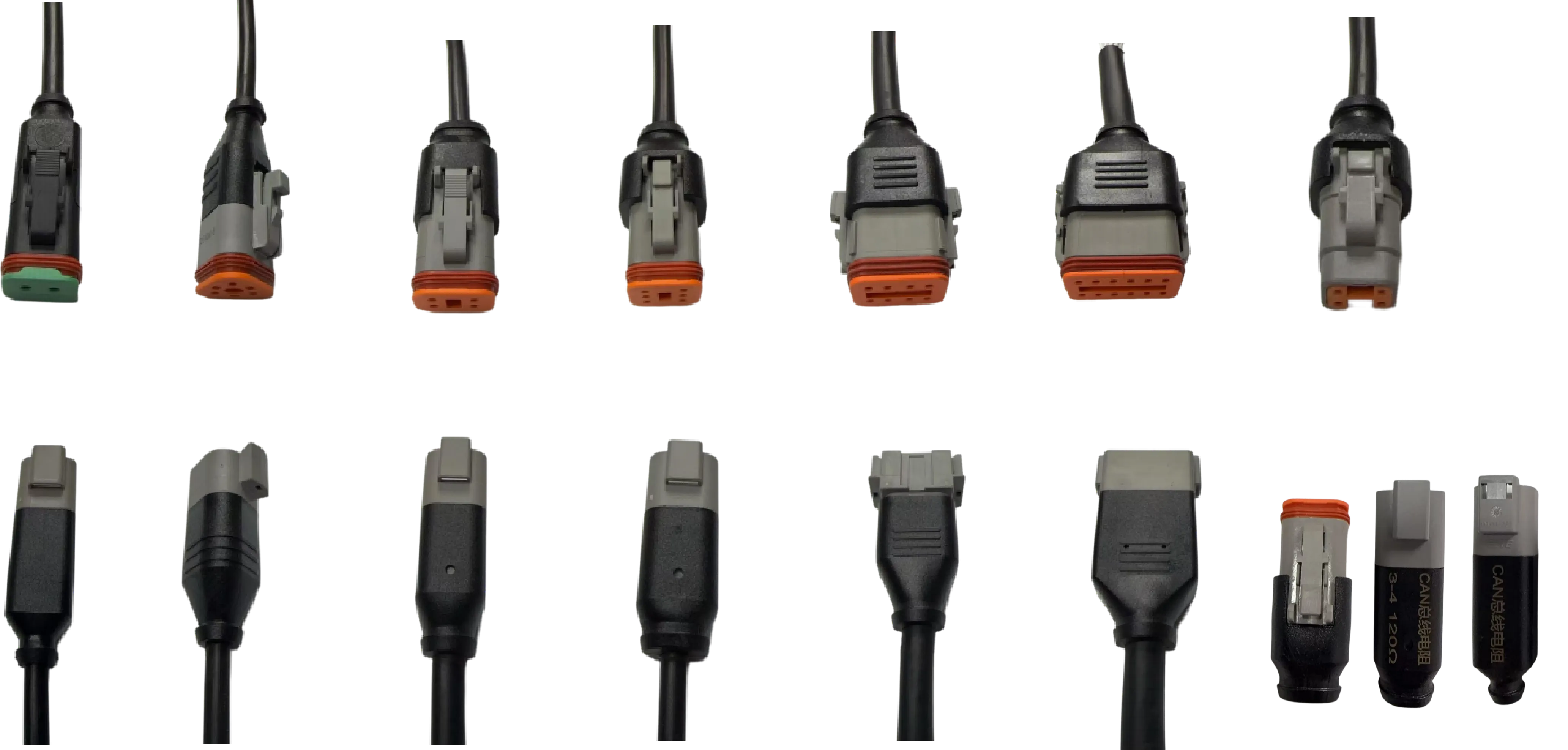

✅ DT04 Series: 2P / 3P / 4P / 6P / 8P / 12P
✅ DT06 Series: 2S / 3S / 4S / 6S / 8S / 12S

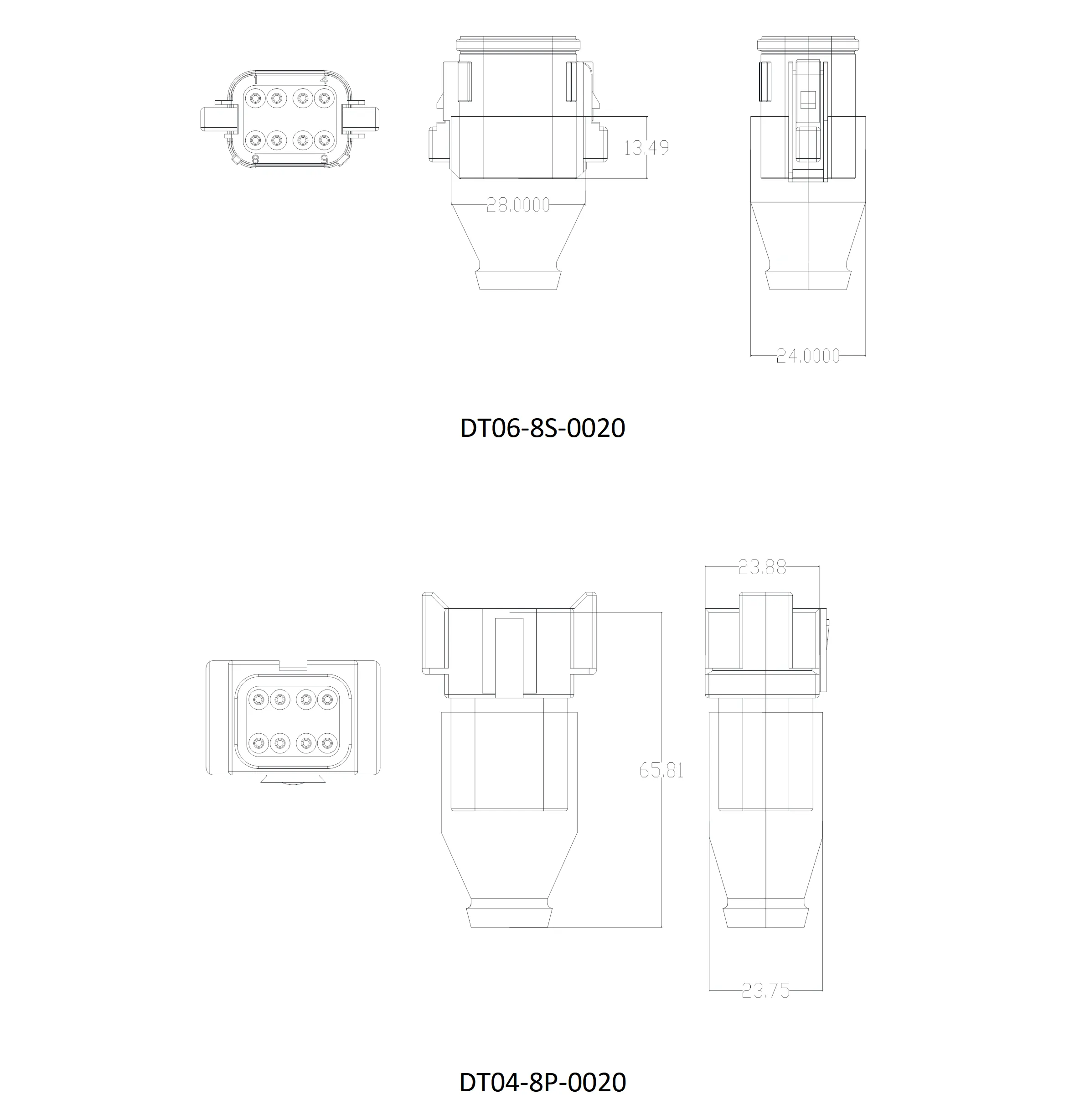

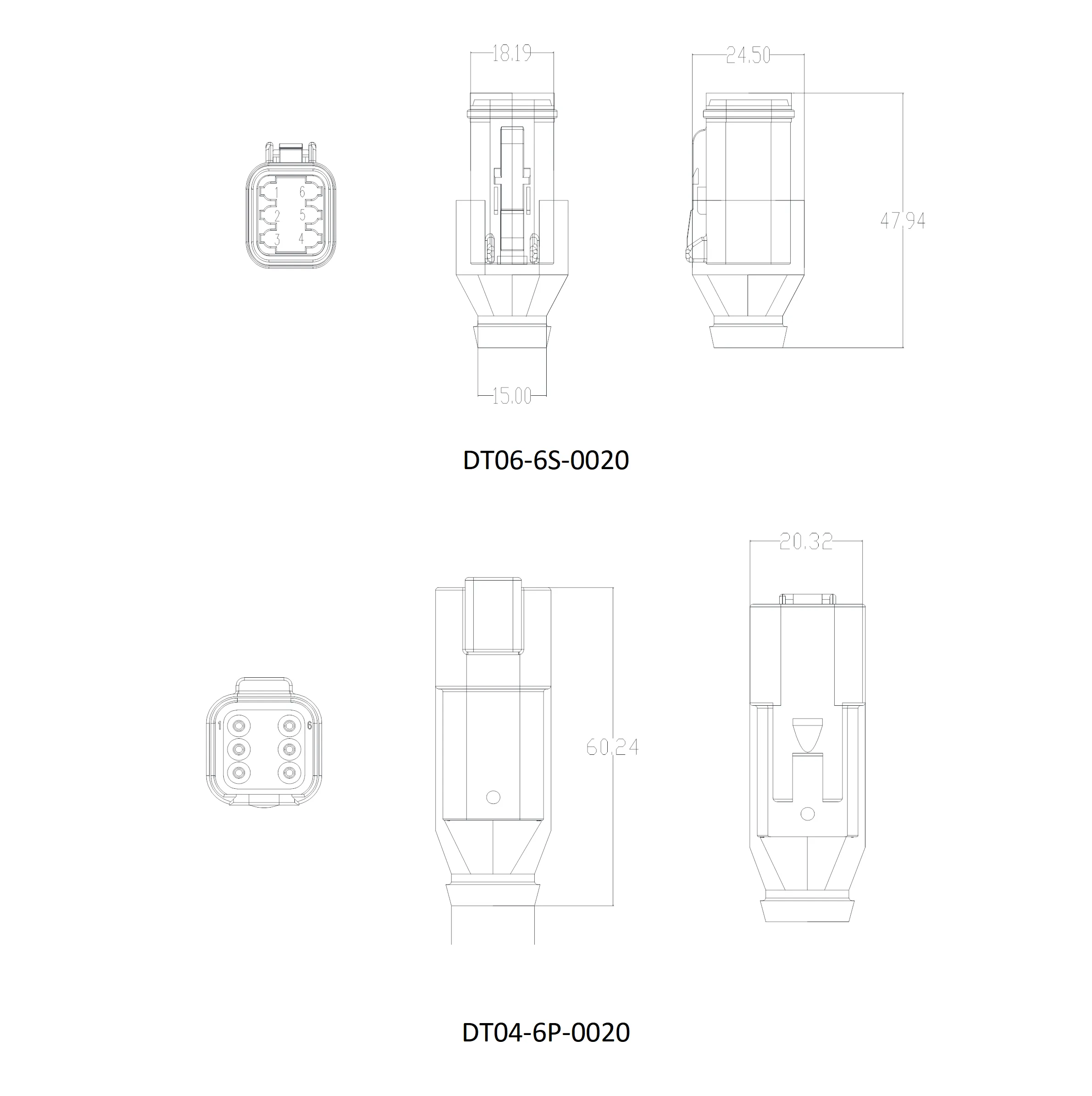

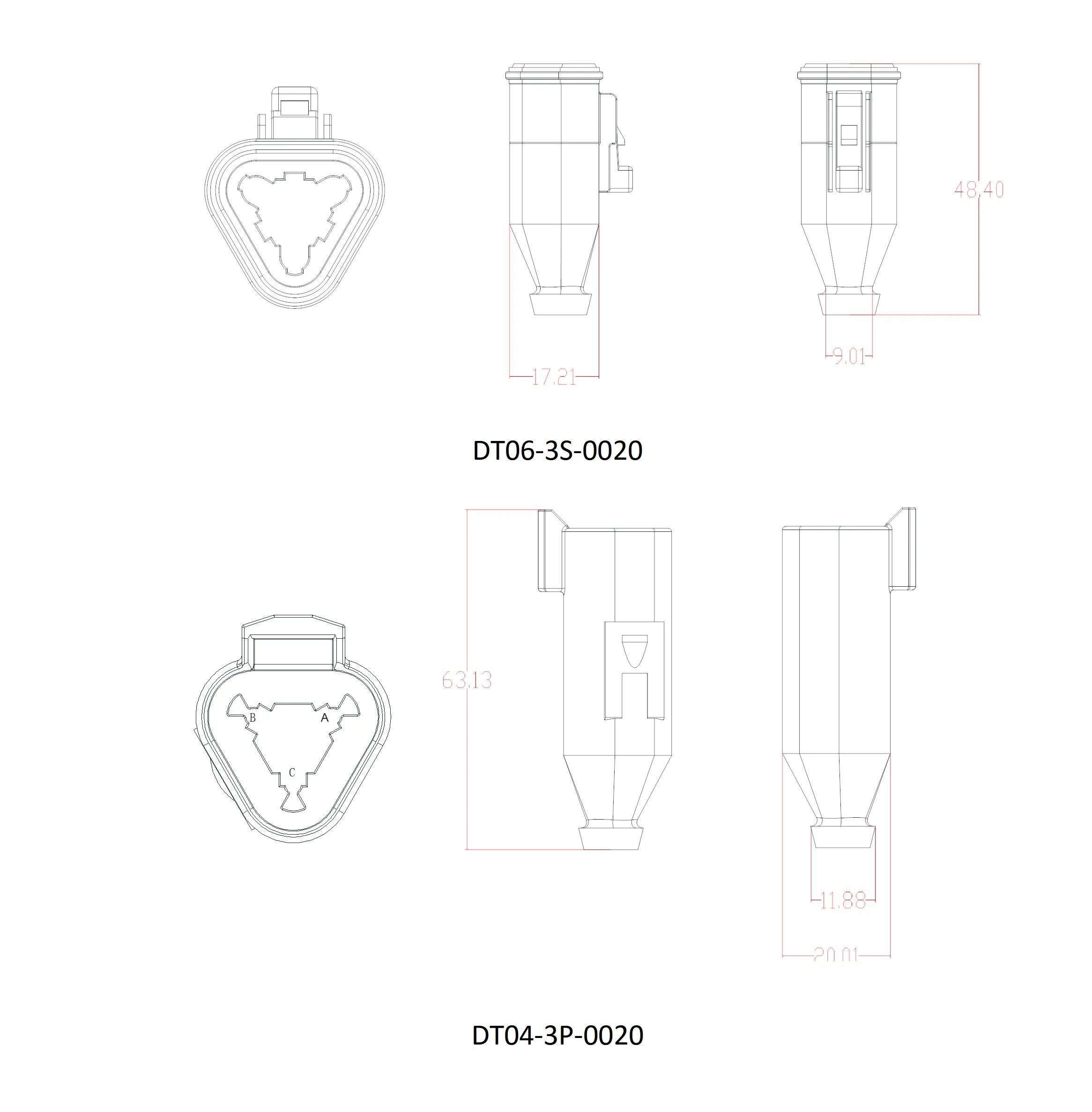

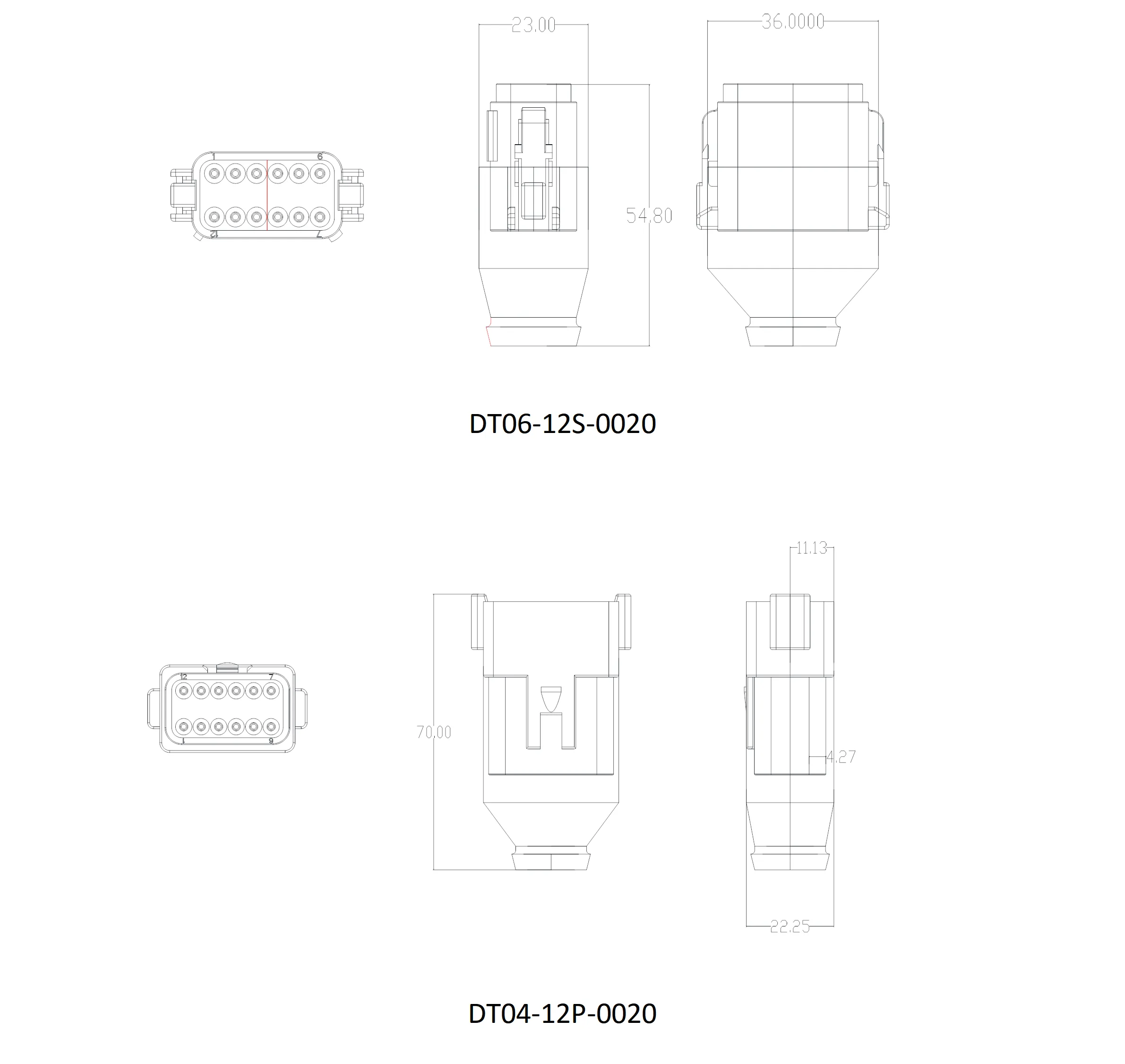

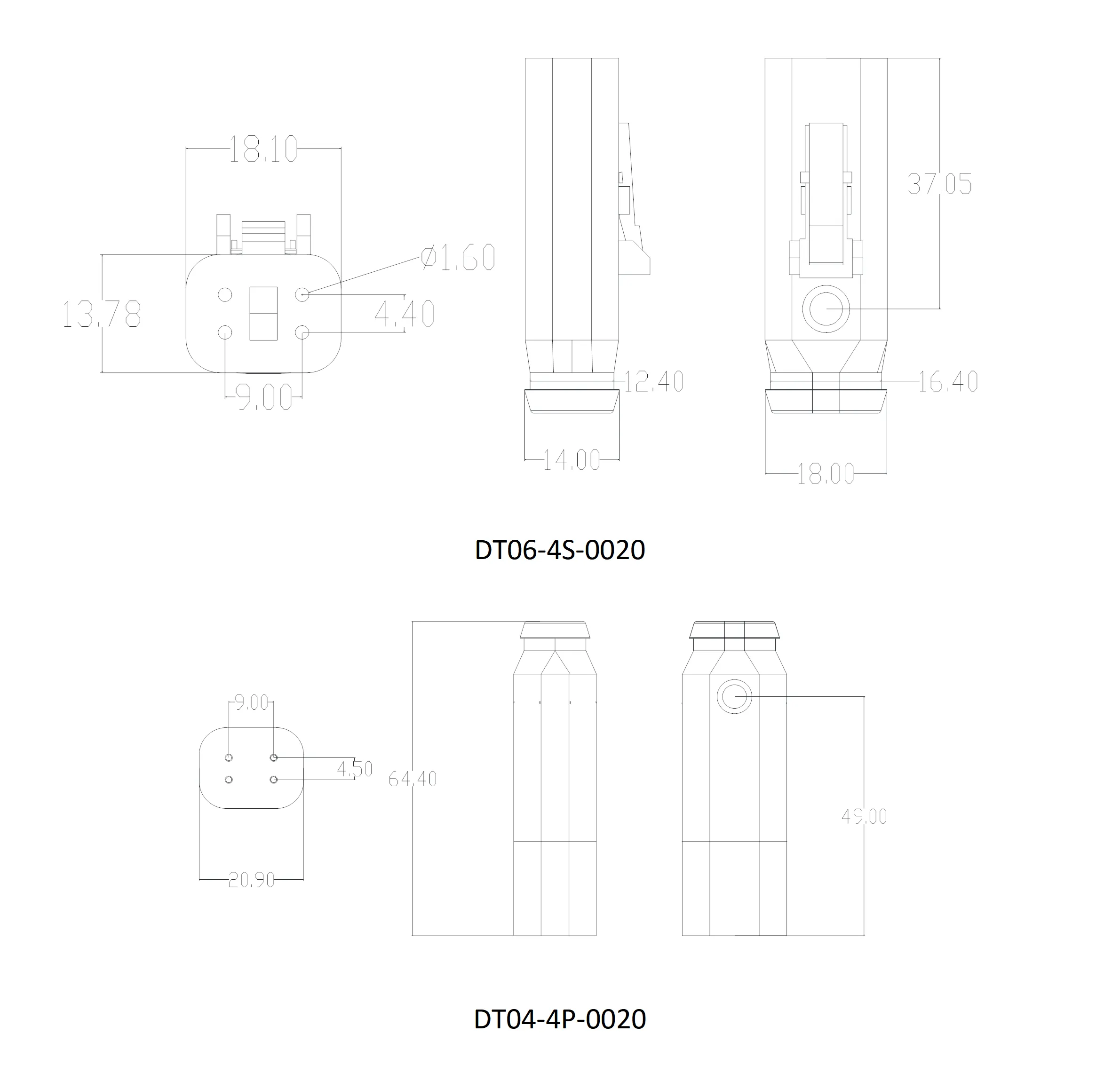

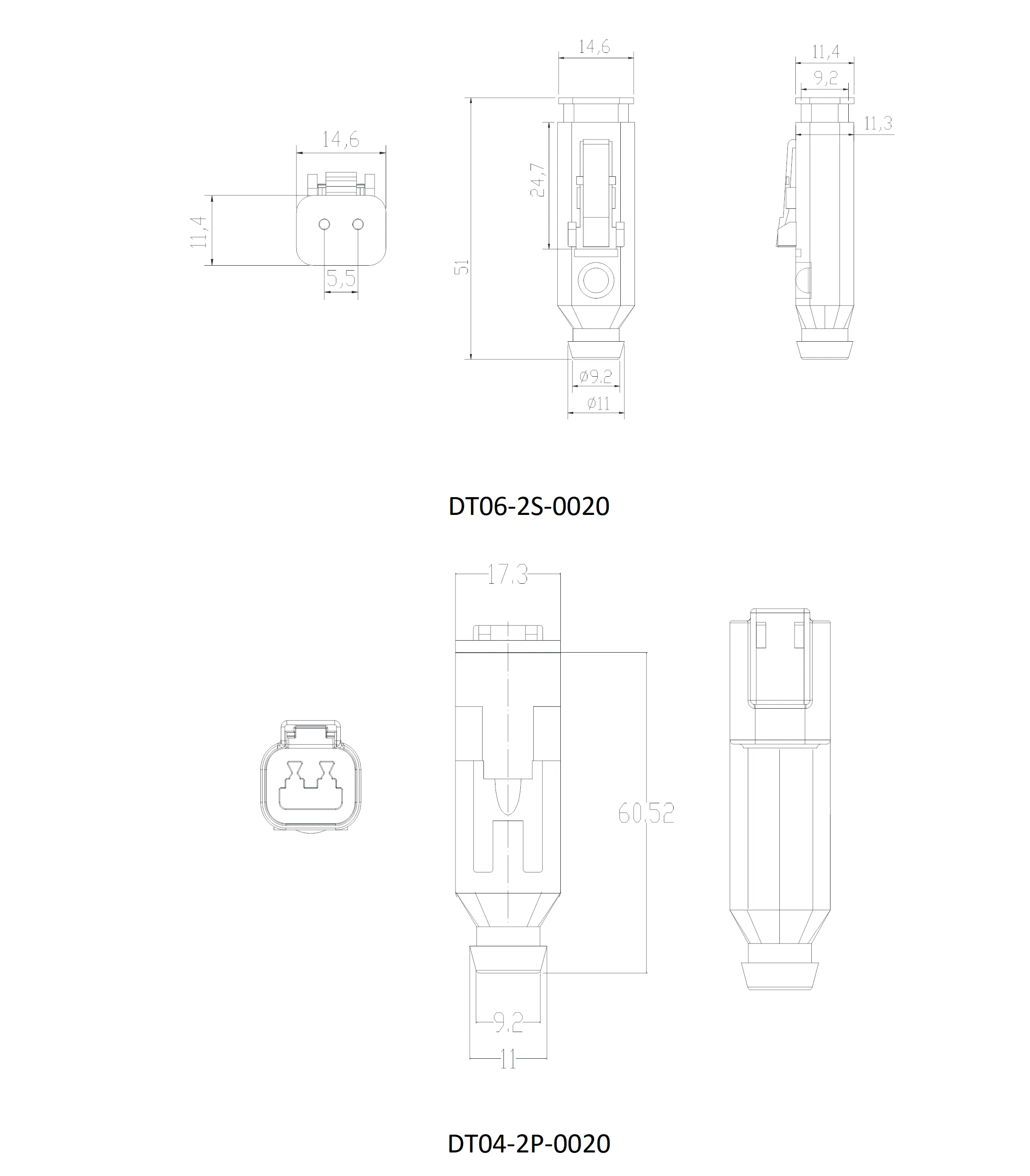

✅ DT04-2P-0020|DT04-3P-0020|DT04-4P-0020|DT04-6P-0020|DT04-8P-0020|DT04-12P-0020
✅ DT06-2S-0020|DT06-3S-0020|DT06-4S-0020|DT06-6S-0020|DT06-8S-0020|DT06-12S-0020
Note: DT04 = Male Connector; DT06 = Female Connector. Please confirm pin quantity and gender before placing orders.
Construction machinery, agricultural machinery, excavators, loaders, harvesters, tractors, aerial work platforms, hydraulic valve electronic control, sensor wiring harnesses, solenoid valve wiring & modified equipment harnesses.
The digits in specifications represent pin positions. When ordering, confirm pin count + DT04 (Male) / DT06 (Female).
Stock items are supplied as connector assemblies by default. If you need pre-crimped finished harnesses, contact us for quotation.
Bulk orders, custom cable lengths and multi-branch harnesses can be manufactured upon request.
Lead time: Goods will be dispatched within 48 hours.
| Item | Details |
|---|---|
| Series | DT04 (Male) / DT06 (Female) |
| Pin Options | 2P / 3P / 4P / 6P / 8P / 12P |
| Type | Heavy-duty waterproof connector for machinery |
| Construction | Pre-molded one-piece wiring harness |
| Application | Agricultural machines, excavators, mobile hydraulic control harness |
| Cable Option | PUR cable available |
| Cable Length | Custom lengths acceptable |
| LED Indicator | Power indicator can be customized on request |

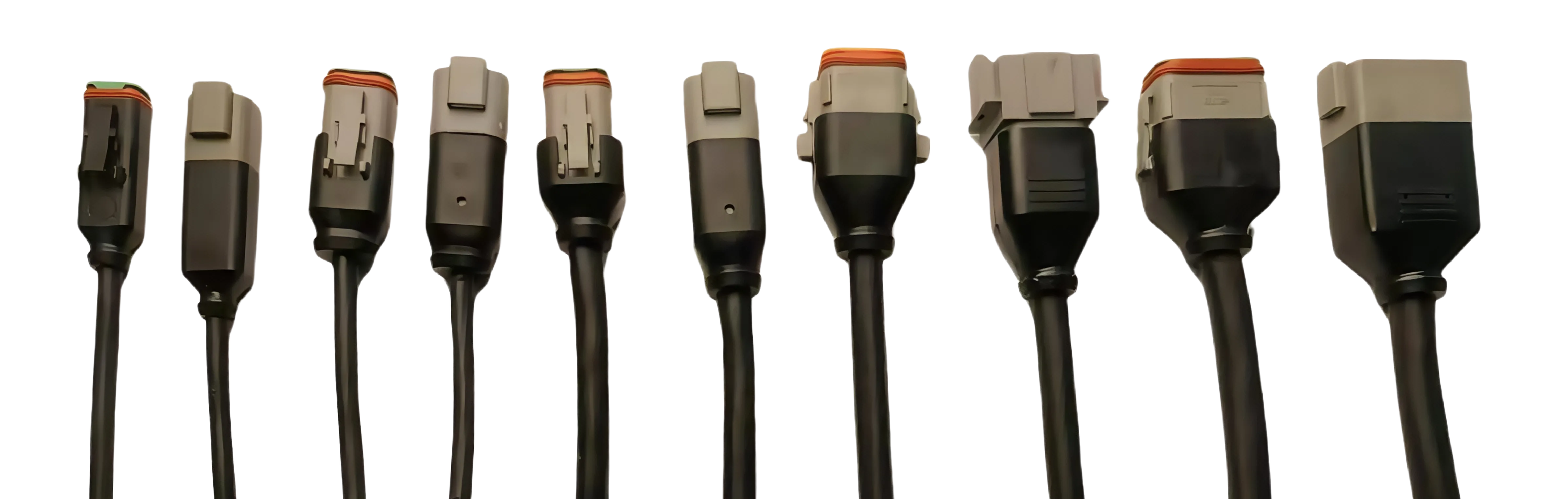

Wide Range of Specifications: 2P,3P,4P,6P,8P,12P male DT04 & female DT06 connectors
IP67 Waterproof & Dustproof, excellent sealing for harsh working environment
Strong Anti-Vibration Performance, stable connection for construction machinery & heavy trucks
Robust Nylon housing, high temperature resistance, long service life
Easy locking & quick plug/unplug, simple field installation and maintenance
Widely compatible with off-road, agricultural, construction machine wiring harness






| Cable Length | Length Specification Code |
|---|---|
| 0.3m | 0030 |
| 0.5m | 0050 |
| 1m | 0100 |
| 1.5m | 0150 |
| 2m | 0200 |
| 3m | 0300 |
| 5m | 0500 |
